POK7 Welding Positioner

MAC Model POK-07 Welding Positioner
$14,999.00 (Chuck not included)

POK-07

Maximum load capacity table in the flat horizontal position 1500 pounds.
Maximum load capacity table tilted 90 degrees vertical position 1500 pounds @ 8 inch CG.
800 AMP Welding Current Conduction.
Power Table tilting 0 to 90 degrees forward.
Table Diameter 24 inches with centering grooves and 6 tee slots.
Variable rotation speed 0.1 to 1.0 rpm

POK-07 Photo Gallery. Click on images to enlarge.

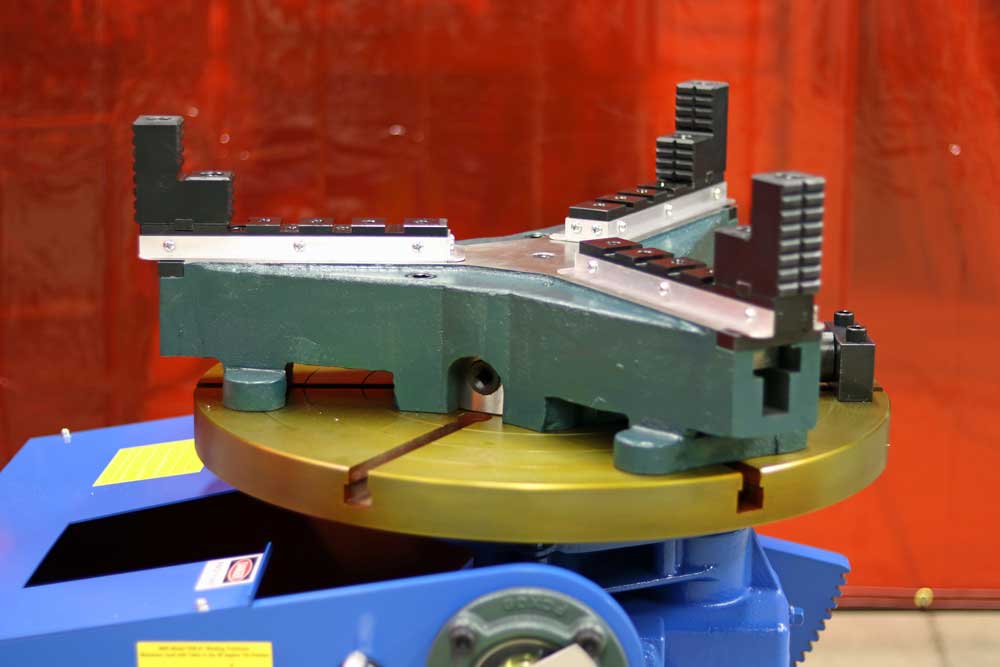

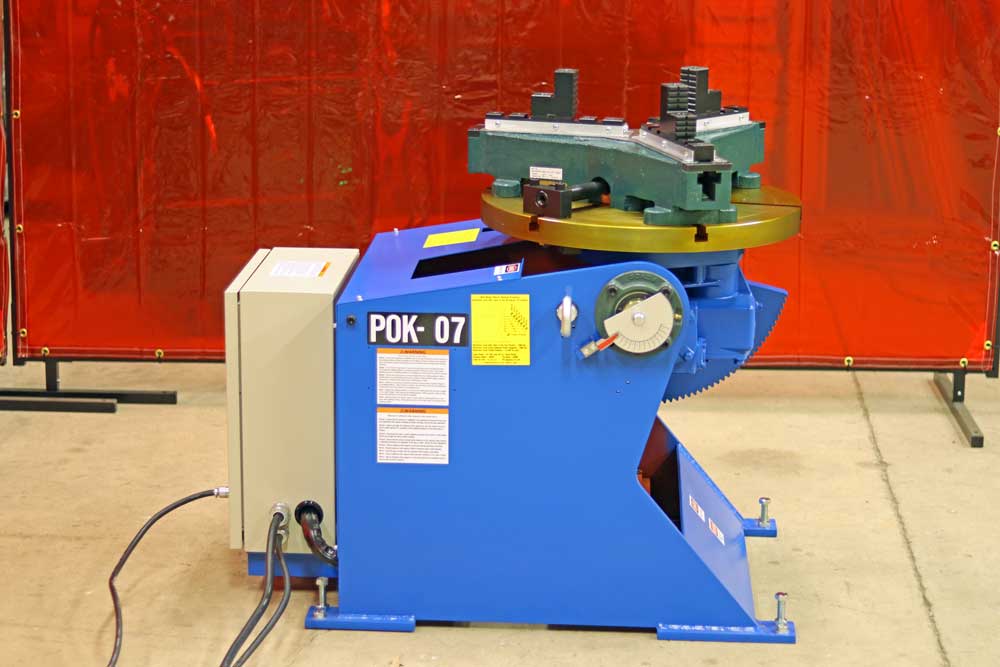

Maximum load capacity table in the flat horizontal position 1500 pounds.
Button

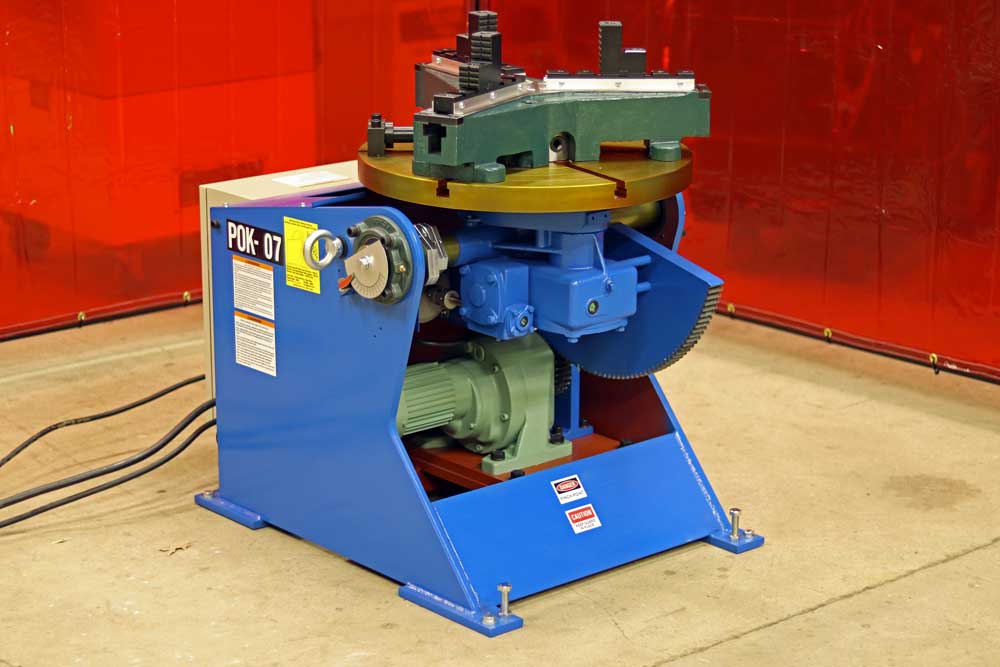

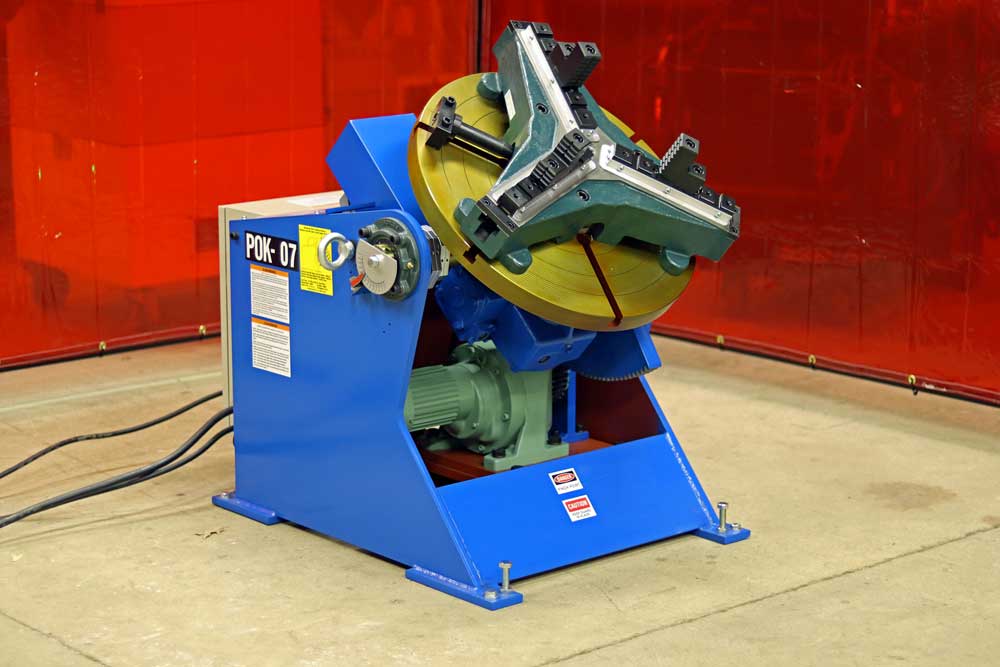

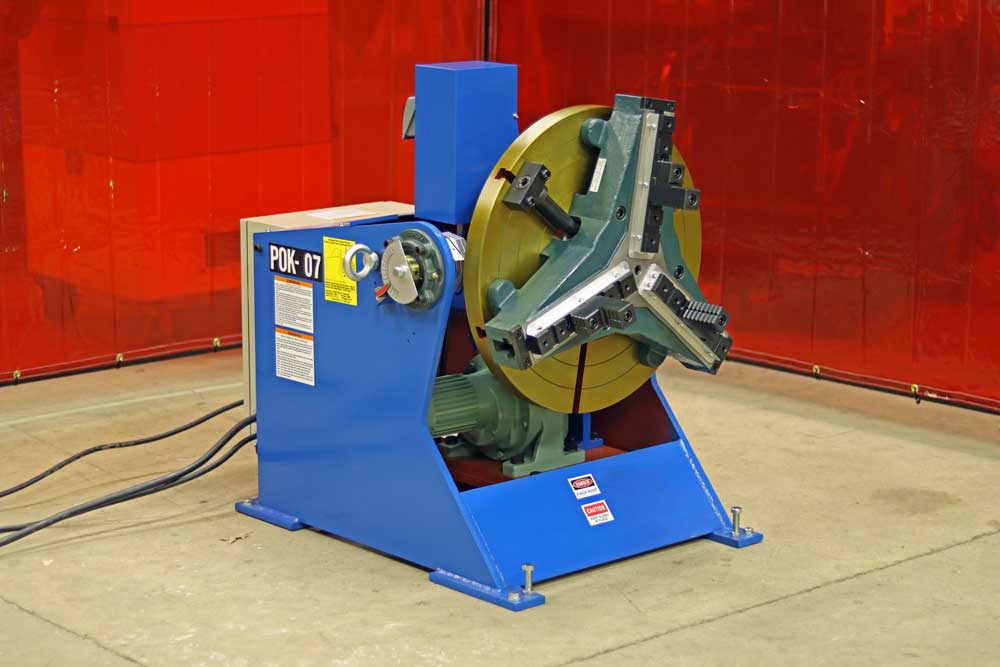

Shown with optional WPT-600 Welding Chuck. Clamping Range 3.35 to 24.21 inches.
Button

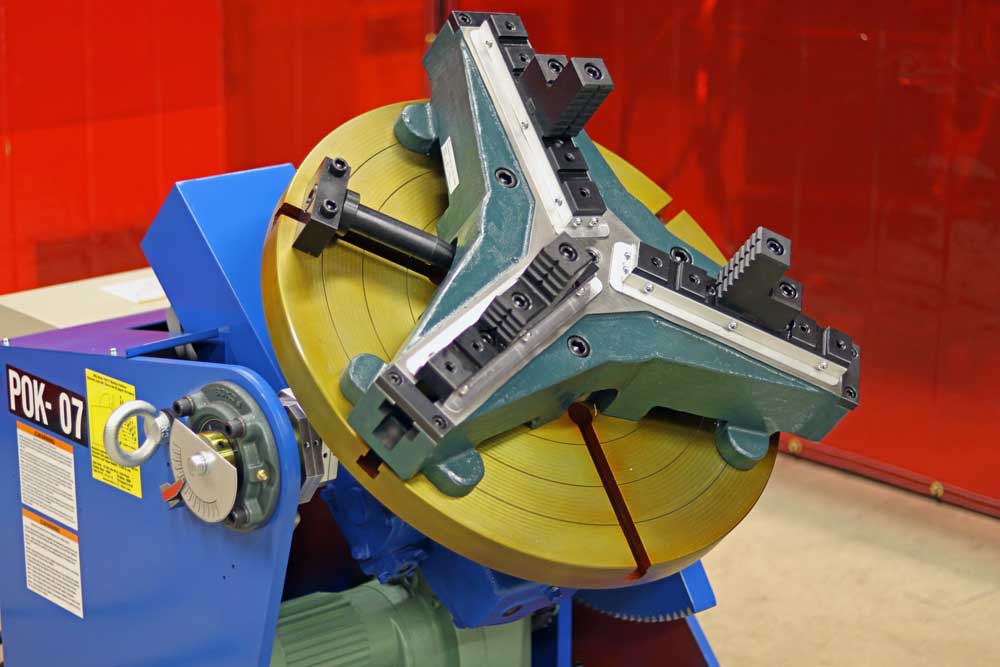

Maximum load capacity table tilted 90 degrees vertical position 1500 pounds @ 8 inch CG.
Button

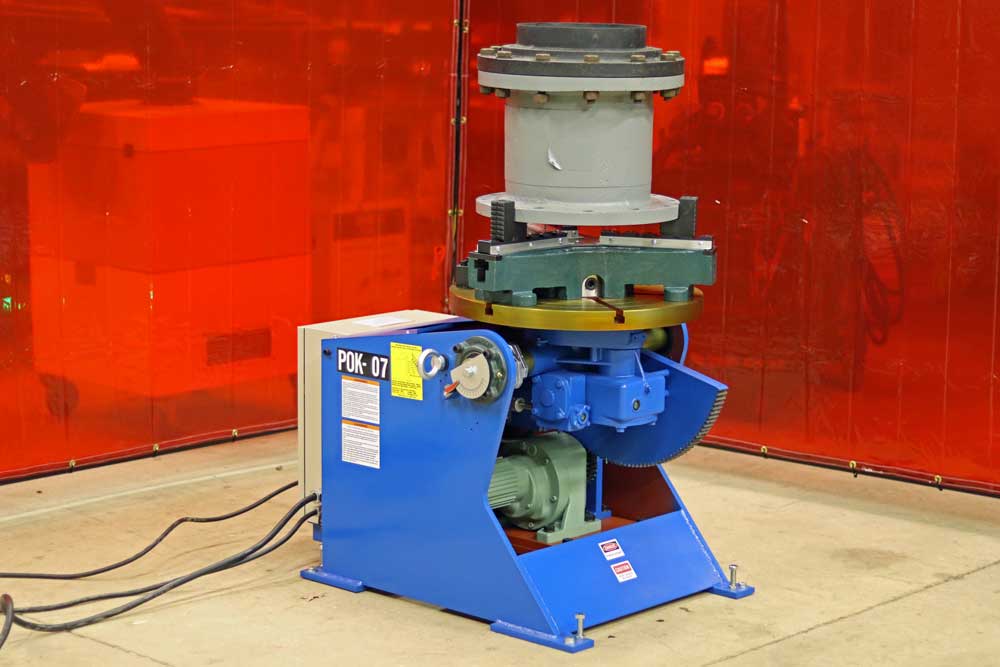

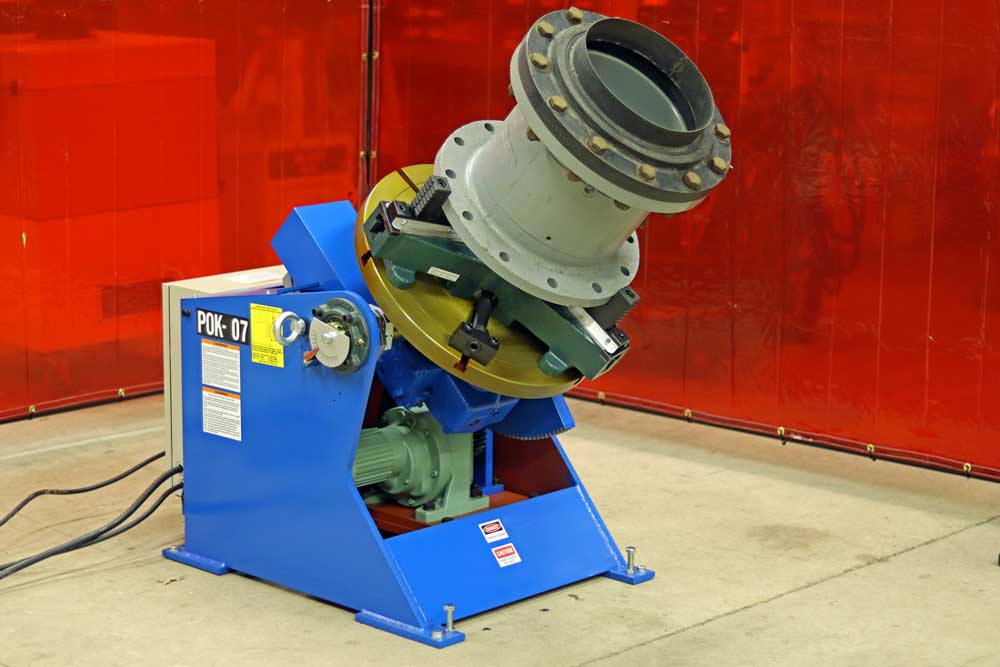

WPT-600 Welding Chuck Holding Workpiece.
Button
Button
Button
Button

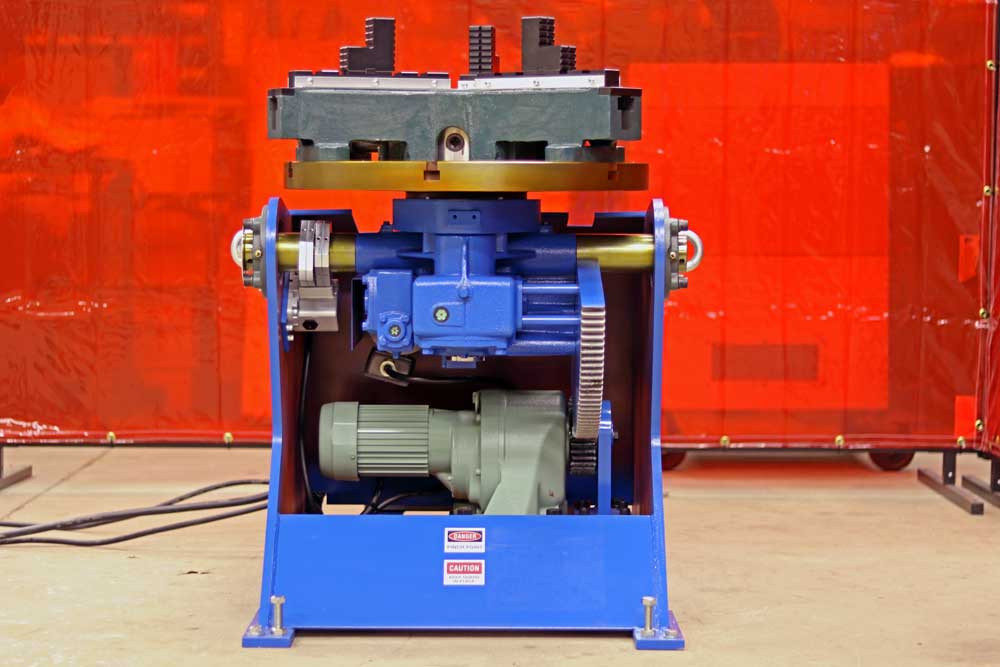

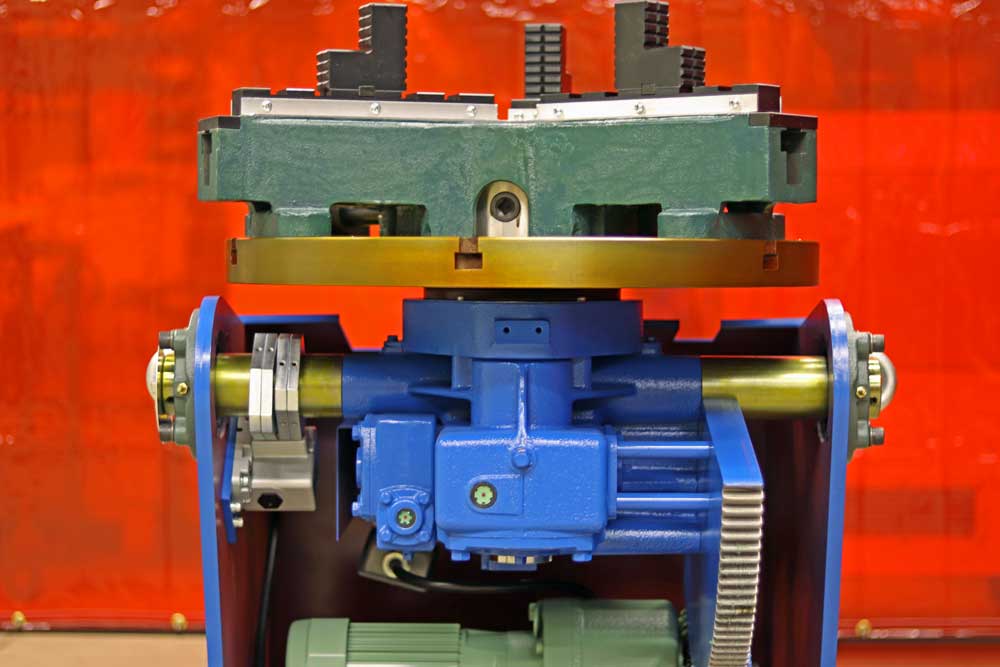

Extra heavy worm gear drives and construction.
Button

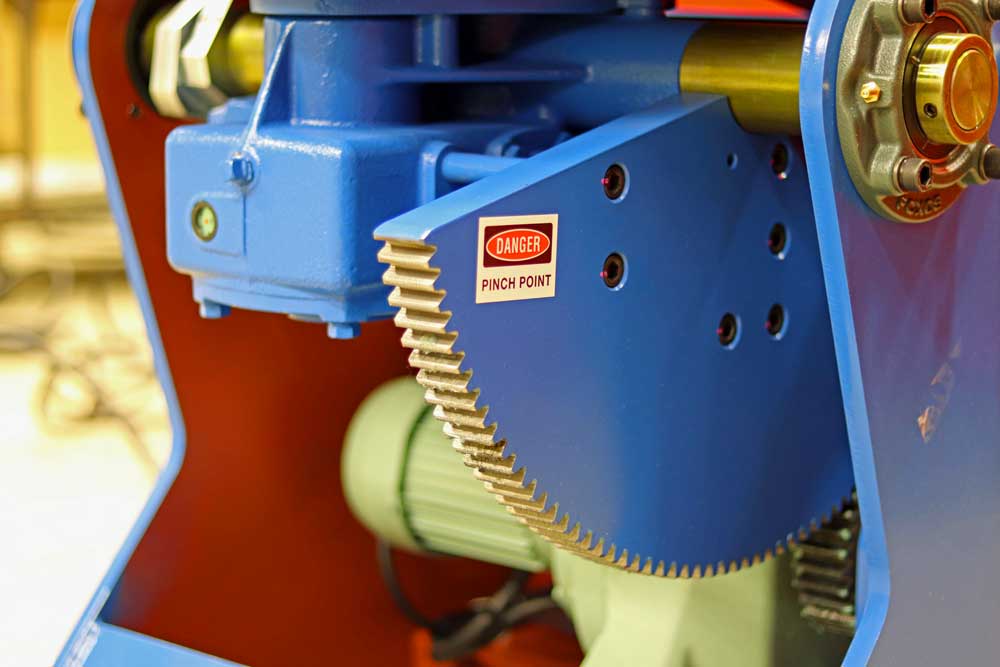

Extra heavy worm gear drives and construction.
Button
Button

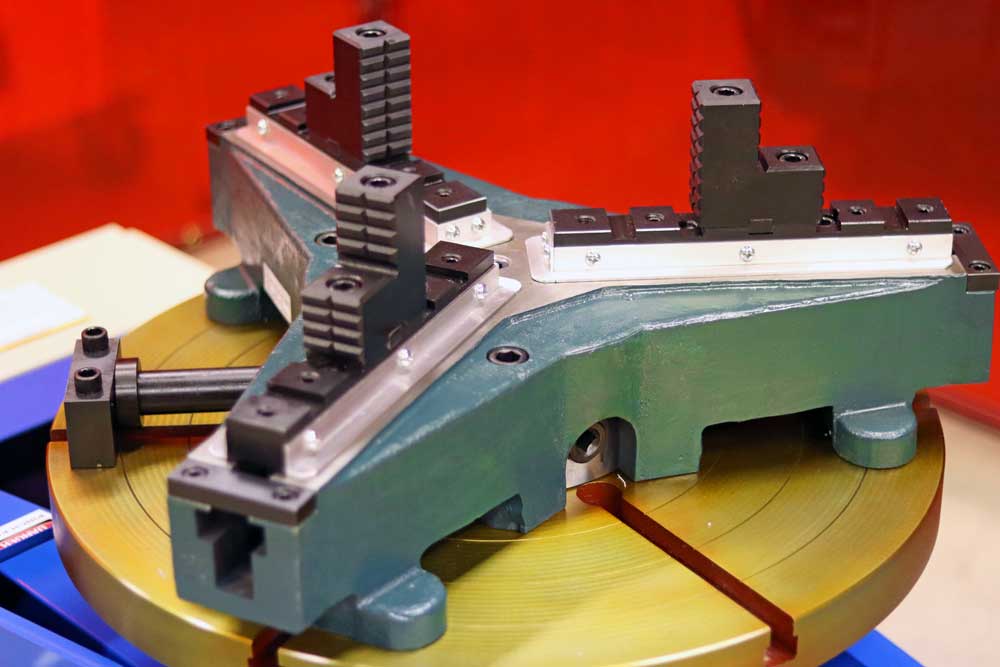

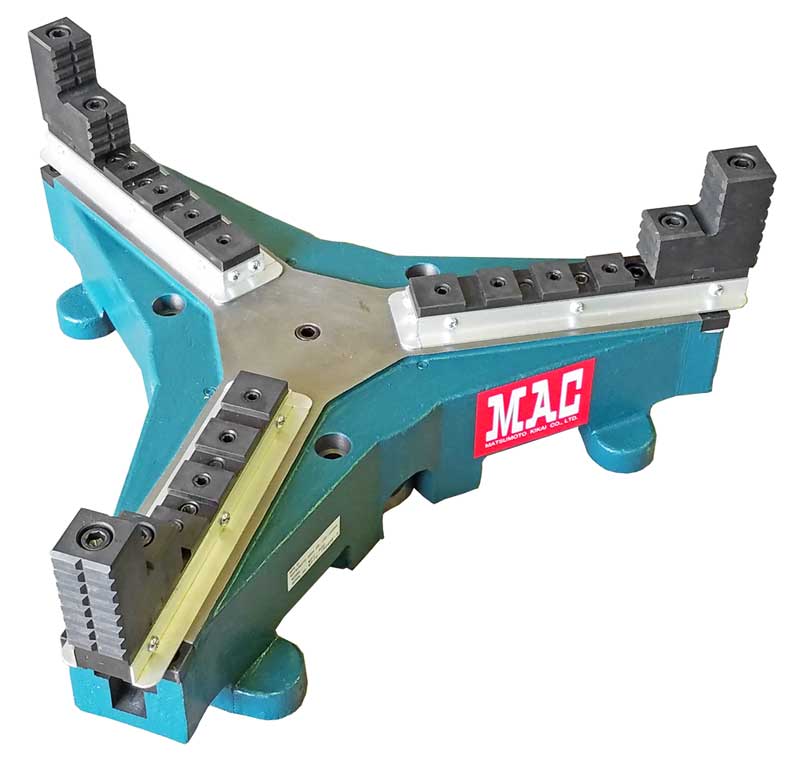

Optional WPT-600 Welding Chuck.
Button
Table diameter 24 inches with centering grooves and 6 tee slots.
Button
Button

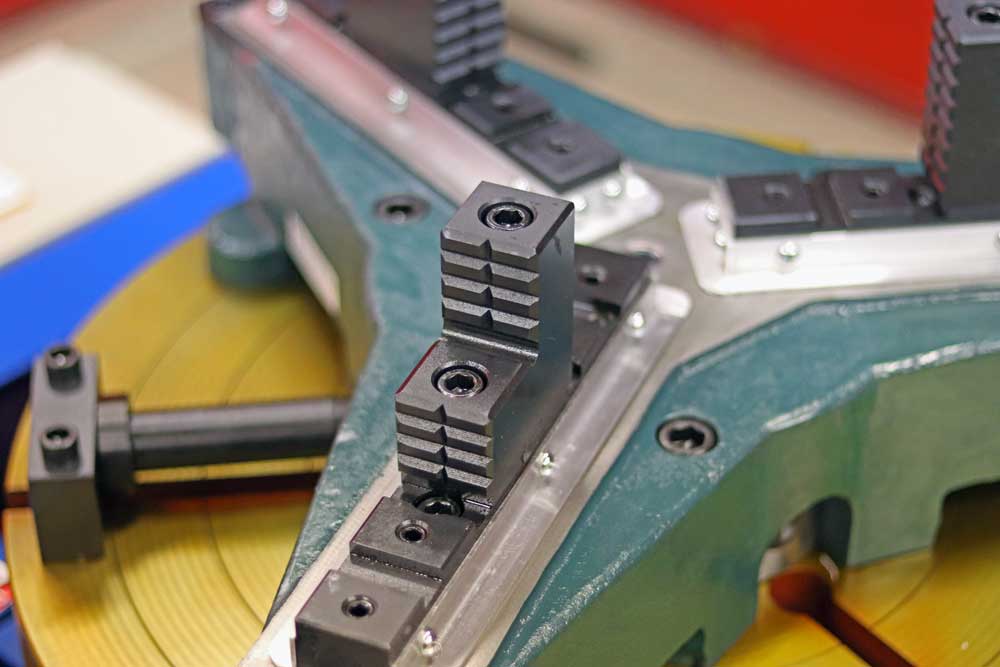

WPT-600 Chuck clamping Range 3.35 to 24.21 inches.
Button

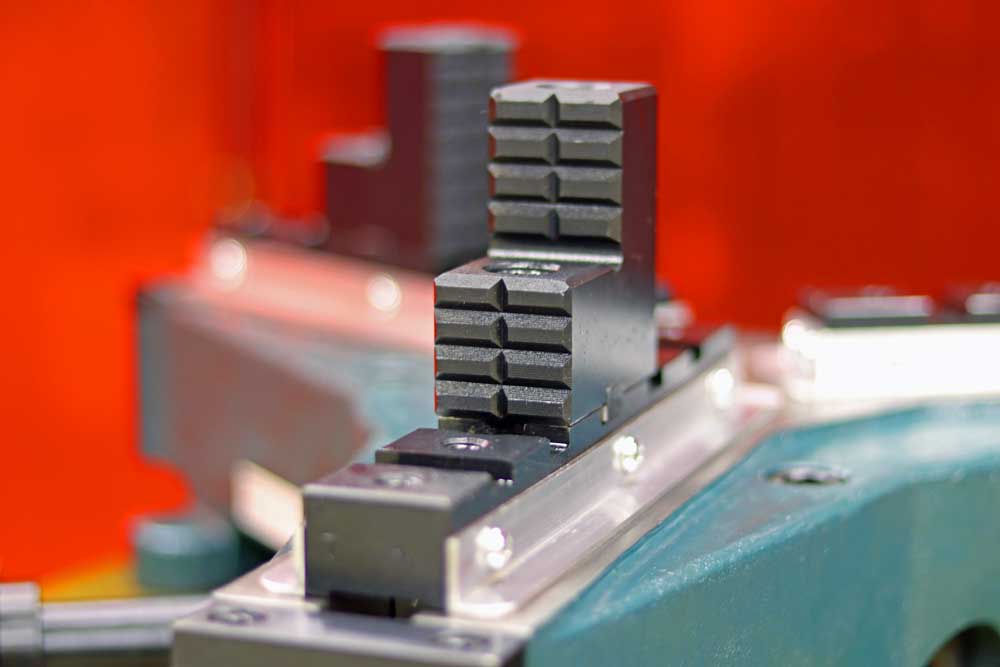

Jaws are Reversible.
Button

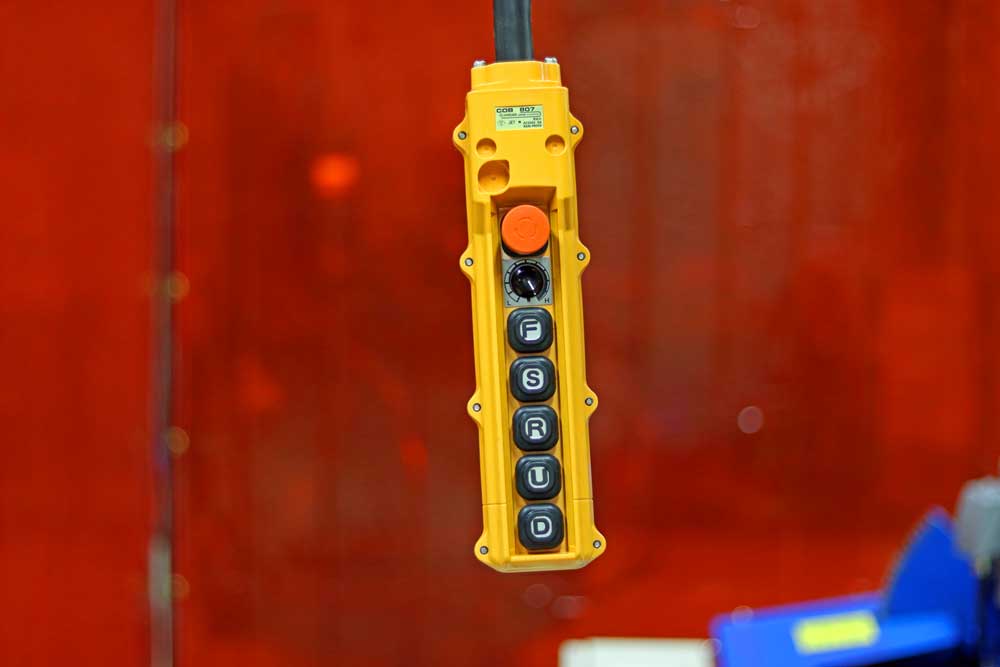

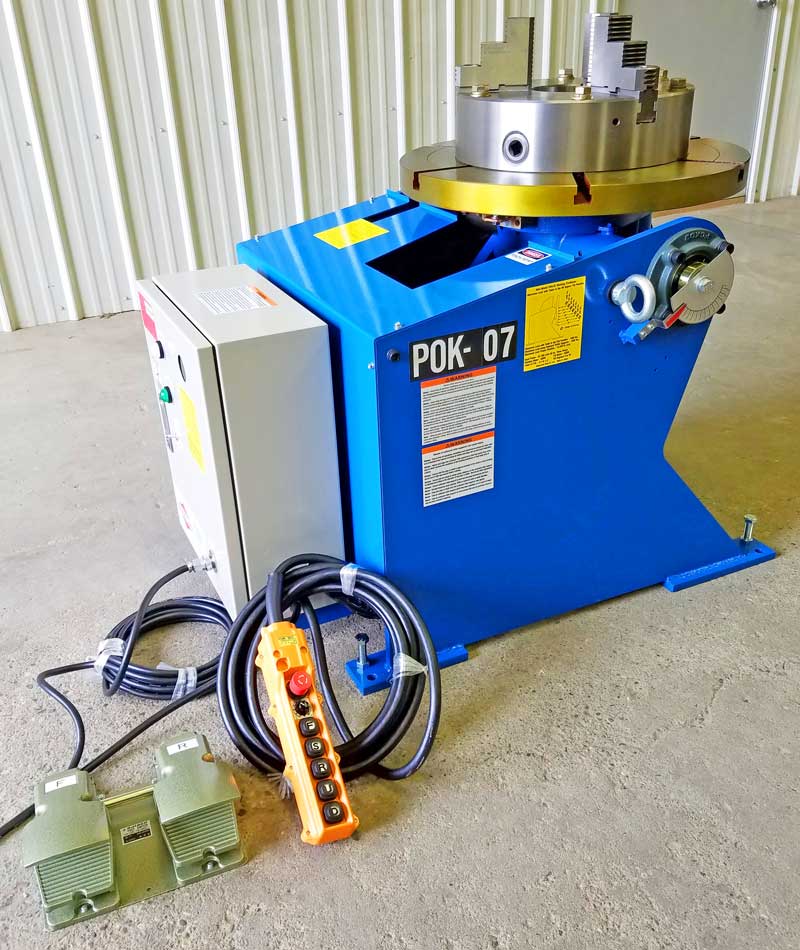

Push button pendent control for power tilt and table rotation.
Button

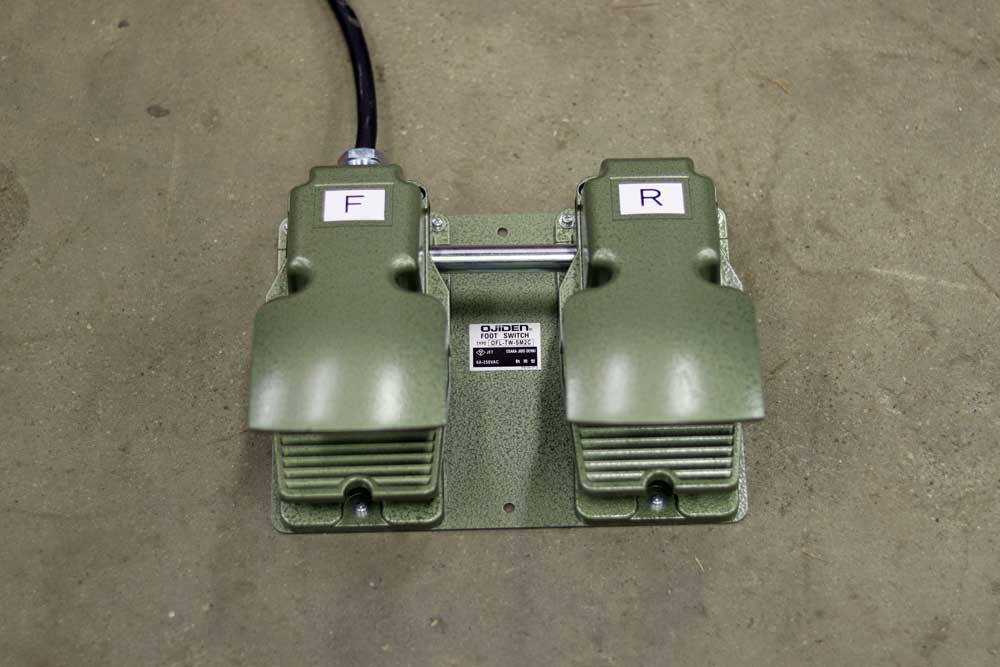

Forward and reverse foot control for table rotation.
Button

Above Video: MAC POK-07 Welding Positioner Shown With Optional WPT-600 Welding Chuck and work-piece.

Above Video: MAC POK-07 Welding Positioner Shown With Optional WPT-600 Welding Chuck.

Financing Made Easy

Quick Response Time
Low Monthly Payments
Conserve Working Capital
Possible Tax Benefits & Accelerated Depreciation
Bundled Financing for Multiple Machines

Specifications Model POK-07 Welding Positioner

Capacity at 8" Center of Gravity and 8" Eccentricity 1500 lbs
Maximum Rotation Torque 12000 inch/lbs
Maximum Tilt Torque 20850 inch/lbs
Table Rotation Degrees 360°
Table Tilt Degrees 0 - 90°
Input Power 230/460 3 Phase
Rotation Motor A.C. Inverter
Rotation Speed infinitely variable 0.1 to 1.0 rpm
Tilt Speed 90°/33 sec (60Hz)
Table Diameter 24 inches
Tee Slots (6) at 60°
Length Overall 41.3 inches
Height Overall 29.5 inches
Width Overall 30.5 inches
Anchor Bolt Holes in Base (4) for 1/2" anchor bolts
Weight Approximate 1100 lbs

Standard features Model POK-07 Welding Positioner

Power Tilt
Infinitely variable speed table rotation.
AC inverter on rotation drive with LED frequency display for speed adjustment.
Push button pendent control for power tilt and table rotation.
For and Rev foot control for table rotation.
800 amp welding ground at 50% duty cycle.
Machined table with centering grooves.
Extra heavy worm gear drives and construction.
Tilt gear shaft supported at each end for long life.
360 degree table rotation CW & CCW with power on indicator light.
High frequency protected for Tig welding.
Twice the tilt and rotation torque of standard 1500 lb units.

MAC Model POK-07 Welding Positioner Options

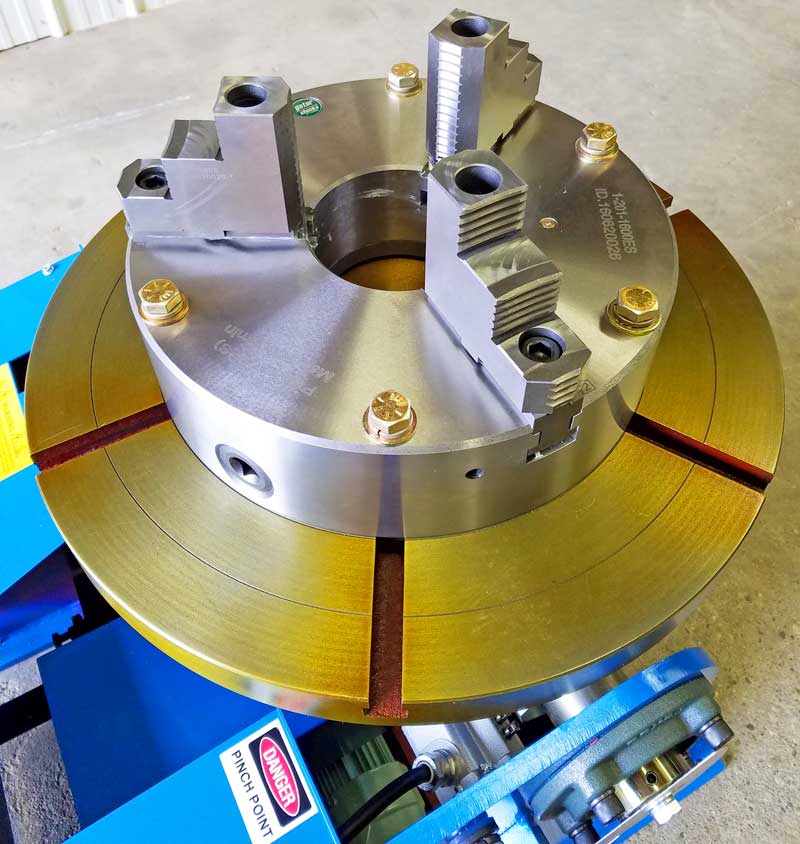

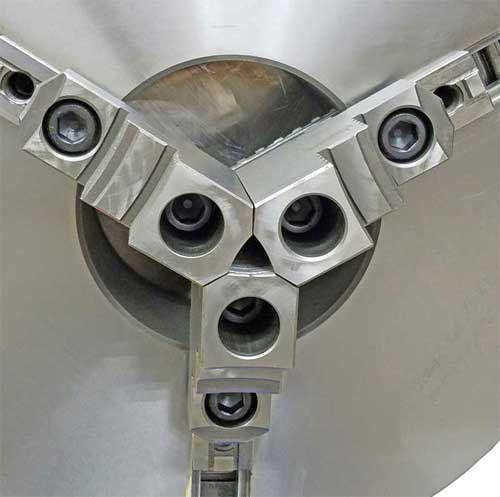

MT16 or MT20 Chuck – Premium Quality Gator 3-jaw self-centering scroll chuck. Hardened reversible American standard jaws. MT 16 Welding Chuck has a clamping range of .39 - 16.250 inches. MT 20 Welding Chuck has a clamping range of 79 - 20.250 inches.
